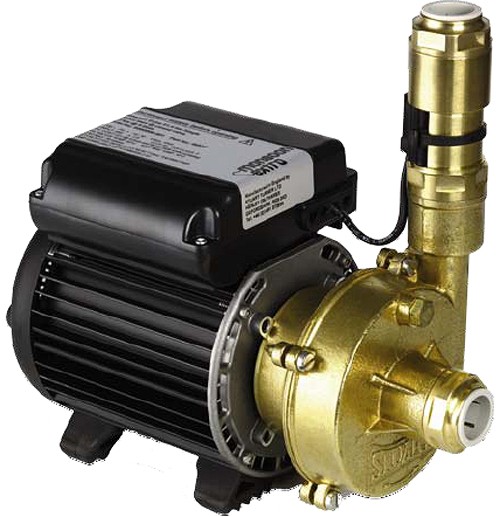

Stuart Turner Monsoon Extra > Standard Single Flow Pump (+ Head. 4.5 Bar).

Stuart Turner Monsoon Extra Standard Single Flow Pump (+ Head. 4.5 Bar).
Stewart Turner shower pumps
Free delivery to mainland U.K.
See related products

Product Information

Monsoon Extra standard single flow commercial pump for use with positive head systems. Includes flexible hoses. Boosts water pressure to 4.5 bar.

  • High pressure.
  • Single flow pump to boost a single water feed, either hot or cold.
  • Positive head: Suitable for positive head conditions only with a minimum gravity flow of 1.0 litres per minute.
  • Suitable for open vented hot and cold water systems.
  • Solid brass construction.
  • Anti vibration feet.
  • Quiet operation (from 55db).
  • Includes 22mm flexible hoses (305mm, push fit).
  • Inlet strainers included.
  • Not suitable for use in pairs boosting common hot and cold supplies to mixer taps and shower valves.
  • Ideal for boosting water pressures to individual outlets where a high pressure is required.
  • Suitable for large houses, small hotels and leisure facilities where multiple showers are required.
  • Suitable for boosting the water outlet between the shower valve and multiple shower heads.
  • Flow switch: Fully automatic. Gravity flow required to start pump.
  • Flow switch sensitivity: Approx 1.0 Litres per min.
  • Maximum flow: 45 litres per minute maximum.
  • Equivalent to raising the cold water cistern 37 metres above its current position.
  • Pipe connections: 3/4"
  • Water pressure: 4.5 bar.
  • Pre wired with 1.5 meter power cable.
  • All electrical connections should be carried out by a qualified electrician.
  • Power consumption: 1060 Watts.
  • Fuse rating: 13 Amps.
  • Enclosure BS rating: IPX4.
  • WRAS approved.
  • 2 Year guarantee: Stuart Turner guarantee this pump for 2 years.

449.95
Includes VAT & Delivery
(374.96 excluding VAT)


Save: 279.11    RRP: 729.06

Product Code:
ST-46326


Additional documents are available:
Monsoon Extra Standard Single Installation Guide (pdf)
Monsoon Extra Universal Single Installation Guide (pdf)

Stuart Turner's Monsoon Extra is a range of centrifugal booster pumps designed for the larger installation that requires higher flow rates. Typical applications would include large houses, small hotels and leisure facilities where multiple showers are required. Established in 1906 Stuart Turner Pumps now offers an extensive range of quality pumping products and solutions, catering for almost every application, from residential home boosting pumps to a wide range of pumps for various commercial applications.

2 Year guarantee: Stuart Turner guarantee their Monsoon Extra pumps for 2 years. All Stuart Turner pumps are WRAS approved.



Standard Single Flow Pump (+ Head. 4.5 Bar). additional image

Standard Single Flow Pump (+ Head. 4.5 Bar). additional image

Standard Single Flow Pump (+ Head. 4.5 Bar). additional image
