Pegler Frames > Frame For Wall Hung Urinal (1170x400mm).

Pegler Frames Frame For Wall Hung Urinal (1170x400mm).
Francis Pegler Quality Bathroomware.
Free delivery to mainland U.K.
See related products

Product Information

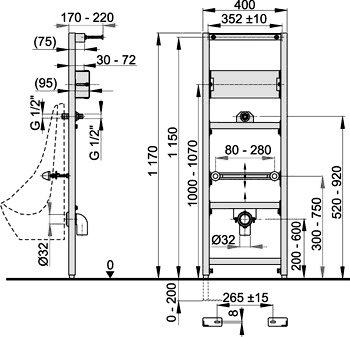

Concealed frame for wall hung urinal. Size 1170 x 400 mm.

  • Pre-wall brackets and waste bend included.
  • For wall-hung urinal with bolt fixings from 80mm to 280mm centres.
  • Good for heavy loads.
  • Frame size: 1170H x 400W mm.
  • Self-supporting frame.
  • Adjustable legs (0 to 200mm).
  • Easy urinal height adjustment.
  • Fully insulated against condensation.
  • Connections: 15mm (1/2") inlet.
  • Connections: 32mm outlet.
  • 10 Year guarantee: Francis Pegler guarantee this urinal frame for 10 years.

£139.97
Includes VAT & Delivery
(£116.64 excluding VAT)


Save: £60.03    RRP: £200.00

Product Code:
FP-FRAME05


The Francis Pegler range of frames allows you to create a new bathroom without all the constraints of floor standing ceramics. These concealed frames are hidden within a solid or prefabricated wall. Pegler system frames can be used in the tightest of spaces, allowing you to create stunning bathrooms even with little space.

Pegler Yorkshire is well known and respected as one of the leading manufacturers of advanced plumbing, heating and engineering products in the world. Pegler products are designed to meet and pass all appropriate product specification and performance standards (e.g. British Standards).

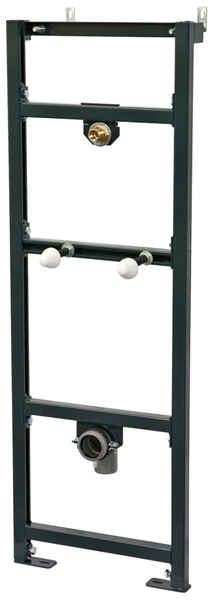

Frame For Wall Hung Urinal (1170x400mm). additional image

Frame For Wall Hung Urinal (1170x400mm). additional image
