Stuart Turner Monsoon Extra > Universal Single Flow Pump (+/- Head. 3 Bar).

Stuart Turner Monsoon Extra Universal Single Flow Pump (+/- Head. 3 Bar).
Stewart Turner shower pumps
Free delivery to mainland U.K.
See related products

Product Information

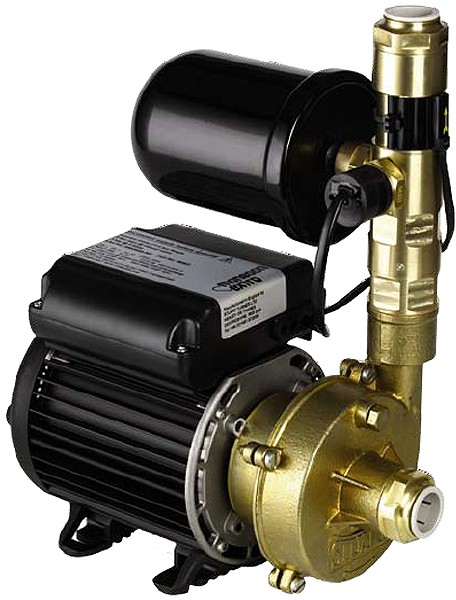

Monsoon Extra universal single flow commercial pump for use with positive or negative head systems. Includes flexible hoses. Boosts water pressure to 3 bar.

  • High pressure.
  • Single flow pump to boost a single water feed, either hot or cold. Can be used in pairs for hot and cold water supplies.
  • Negative or positive head: Suitable positive or negative head conditions.

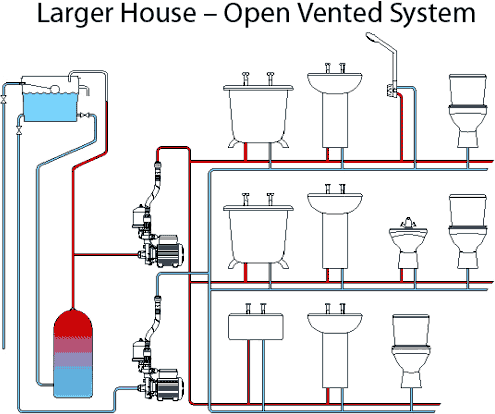

  • Suitable for open vented hot and cold water systems.
  • Solid brass construction.
  • Anti vibration feet.
  • Quiet operation (from 55db).
  • Includes 22mm flexible hoses (305mm, push fit).
  • Inlet strainers included.
  • Ideal for boosting water pressures to individual outlets such as mixer taps and shower valves where a high pressure is required.
  • Suitable for large houses, small hotels and leisure facilities where multiple showers are required.

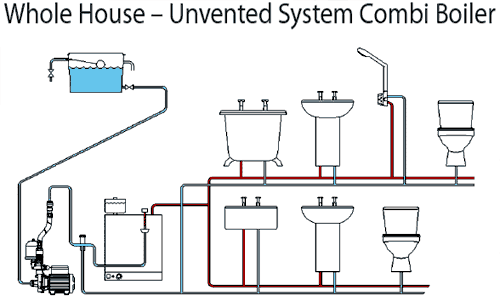

  • Installed in conjunction with a break tank, this style of pump can be used to boost water pressure into un-vented hot and cold water systems.
  • Flow switch: Fully automatic. Gravity flow not required to start pump.
  • Maximum flow: 45 litres per minute maximum.
  • Equivalent to raising the cold water cistern 24 metres above its current position.
  • Pipe connections: 3/4"
  • Water pressure: 3 bar.
  • Pre wired with 1.5 meter power cable.
  • All electrical connections should be carried out by a qualified electrician.
  • Power consumption: 920 Watts.
  • Fuse rating: 13 Amps.
  • Enclosure BS rating: IPX4.
  • WRAS approved.
  • 2 Year guarantee: Stuart Turner guarantee this pump for 2 years.

£473.96
Includes VAT & Delivery
(£394.97 excluding VAT)


Save: £303.53    RRP: £777.49

Product Code:
ST-46350


Additional documents are available:
Monsoon Extra Standard Single Installation Guide (pdf)
Monsoon Extra Universal Single Installation Guide (pdf)

Stuart Turner's Monsoon Extra is a range of centrifugal booster pumps designed for the larger installation that requires higher flow rates. Typical applications would include large houses, small hotels and leisure facilities where multiple showers are required. Established in 1906 Stuart Turner Pumps now offers an extensive range of quality pumping products and solutions, catering for almost every application, from residential home boosting pumps to a wide range of pumps for various commercial applications.

2 Year guarantee: Stuart Turner guarantee their Monsoon Extra pumps for 2 years. All Stuart Turner pumps are WRAS approved.



Universal Single Flow Pump (+/- Head. 3 Bar). additional image

Universal Single Flow Pump (+/- Head. 3 Bar). additional image

Universal Single Flow Pump (+/- Head. 3 Bar). additional image

Universal Single Flow Pump (+/- Head. 3 Bar). additional image
